Do you know about Pivot Tables?

Pivot Tables is a great tool in excel. It helps prepare reports and get insights from huge data sets with just a few clicks. It can help summarize data, reorganize data, group, sort and filter data quickly.

If we have a large data set and want to get quick insights, it is important to know the Excel Pivot Table function.

Let us learn a few features of Excel Pivot Table in this article.

Before inserting a Pivot table, you need to ensure that the data is in proper format.

  • The data set should not have any empty rows/ columns
  • All the columns in the data set should have headers
  • There are no totals/ sub totals in between

Once you ensure that all the three conditions are met. Your data set is good for the Pivot table.

How to insert Pivot Tables?

Here we have a data set showing monthly sales by regions and person. The data extends till row 888. We want to create a report showing sales by regions and salesperson.

Creating reports with Pivot Tables

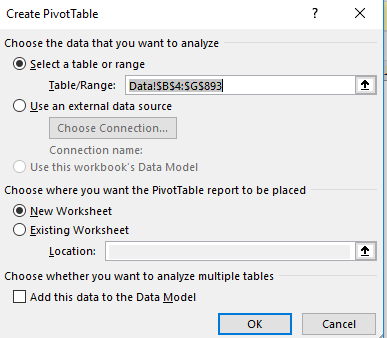

To insert a Pivot table, click anywhere on the data, Go to the Insert tab and click Pivot table. You get the below dialogue box.

The table range is automatically selected.

It again asks if the Pivot table report is to be placed in the New worksheet or existing worksheet. We have selected new worksheet. Then click on OK.

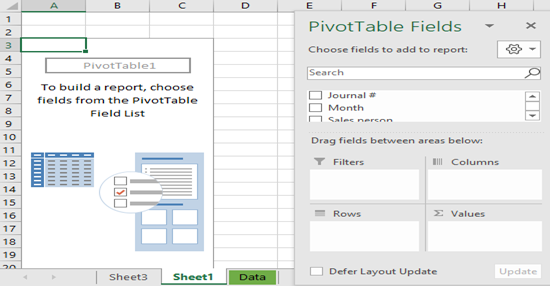

Once you click on OK. You get a Pivot table set up in another sheet.

On top you have the pivot tables fields. The field names are the headers of the data set (Journal, Month, Salesperson etc. in our example). This is the reason why we should have a header for each column in the data set. Below is the area for the fields we want to see in our Pivot table.

You must drag the fields to the relevant section (rows, columns, values etc.) based on the type of report you want to create.

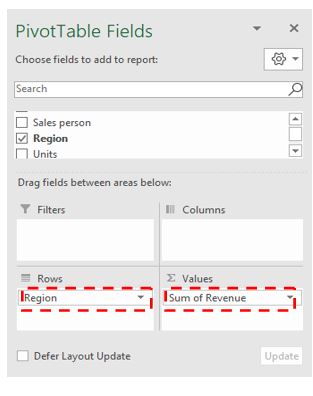

For example, if you drag the region in the rows section and revenue in the Values section, you get the following report.

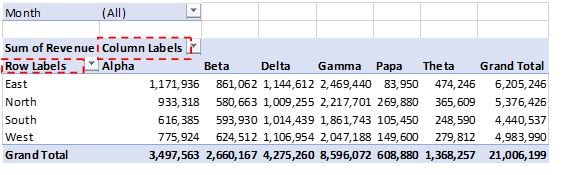

Similarly, if you want to see the sales by region and salesperson, just drag the Salesperson field in the column section. You get the following table.

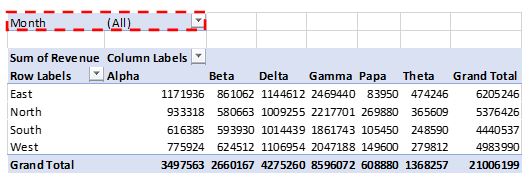

If you want to get the sales by month, drag the month in the filter section.

You can select the month from the drop-down list.

This is how we can summarize the data with the help of Pivot table.


Pivot Tables Report Formatting / Structure

Number formatting


To change the number format, Right click on the pivot table and Select Number Format and choose the format you want. You can insert/remove decimals, insert 1000 separator, convert to percent etc.

Field Headers

To remove the field headers, Click on the Pivot Table and select Pivot Table Analyze TabThen Deselect Field Headers.

The row label and Column label description gets removed from the Pivot table (See below).


Pivot Tables Design

To change the design of the table, click on the Pivot table , then go to the design tab and select the design from multiple options available .

Grand Totals

The default Pivot table has Grand Totals both in rows and in columns. We have the option to remove either or both.

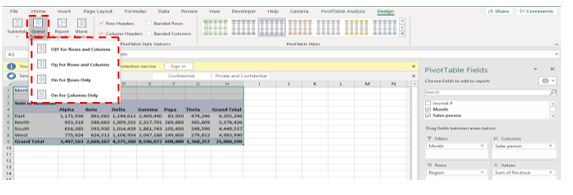

To add or remove Grand Totals Click on the Pivot Table so that the Design Tab gets activated. Click on theDesign tab, Then Click on Grand Totals and select the relevant option for your report.


Sorting Data

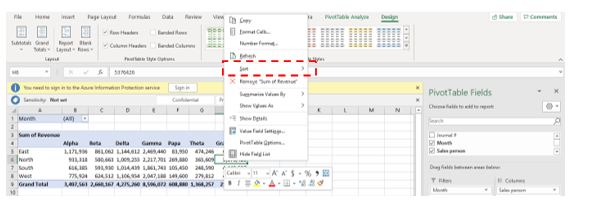

If you want to sort the data by regions, just right click on the Pivot Table and select Sort data.

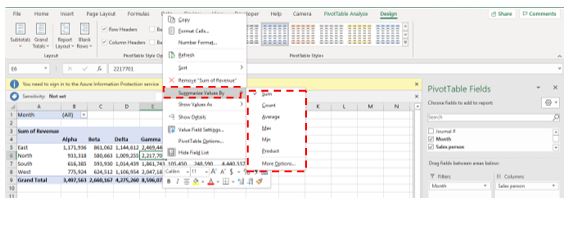

The default value in the Pivot table is Sum of total sales made by each salesperson by region. In case we want to change it to average sales, just right click on the Pivot Table and select Summarize Values by option. You get a range of options- Sum, Count, Min, Max, Average etc. You can select the option based on your requirement.

If instead of total revenues, you want to show the revenues by %, Right click on the table and Select Show Value As option. You can select from the list of available options – % of Grand Total, % of Row Total, column Total etc.

Changing the layout of the Pivot Tables

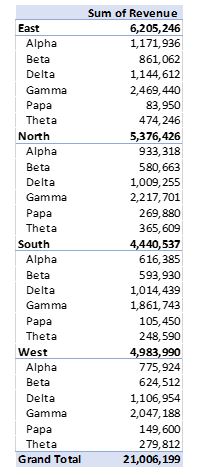

If we want to change the layout of the Pivot Table, just click on the table and then in Pivot Table fields, make the changes you want. For example, if we want to see the revenues by regions and salesperson in rows, drag the salesperson field from Columns section to Rows section. Your table will appear as follows.

Have your read our blog Waterfall Charts in Excel


Pivot table slicer is a tool to filter data and make the Pivot Table report interactive. To insert a Pivot Table slicer, Click on the Table. Then Go to PivotTables Analyze TabSelect Insert Slicer.

You get an insert Slicer Dialogue Box. Choose the relevant option.

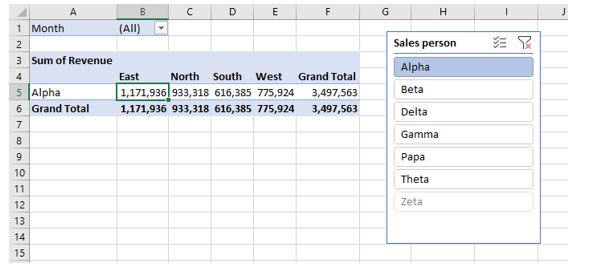

In this example, I am selecting the Salesperson. Then Click OK. We get the Slicer besides out Pivot Table. We get the full list of Salesperson. The Pivot Table data gets filtered based on the chosen option.


Data Update for future reports

In case there is any change in the Pivot Table source data, the Pivot table does not get updated automatically. Right click on the table and then click on Refresh so that the changes in the data get reflected in the table.


This is how we can prepare interactive reports using Pivot table feature in Excel. If you like playing with Data sets, pivot table is a great tool. For you to get a good understanding just keep exploring the different features of the Pivot table. It will help you further enhance your data analysis skills in excel.
